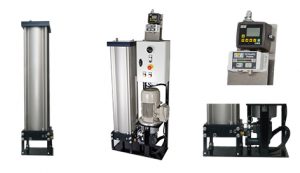

RMF offline filter GOLU

The RMF offline filter GOLU (Giant Off Line Unit) is designed for larger industrial hydraulic and lubrication systems but is also very suitable for use on testbenches and turbines.

Easy to use
The pump is a cast steel gear pump with a large viscosity range from 12 cSt – 800 cSt. The GOLU’s filter housing is combined with a pump motor group and an electrical control box. This is an easy to use plug-and-play filter solution. It only requires electrical power, suction and return lines.

Not only solid particles but water as well
Filter elements available for the GOLU, run from 1 μ up to 25 μ. When fitted with water absorbing elements, the reduced water contamination level prolongs the life of the additive package and reduces oxidation of the oil, components and bearing surfaces.

Monitoring
The RMF offline filter GOLU can be equipped with additional components for condition monitoring, such as the CMS (Contamination Monitoring Sensor), the OQS (Oil Quality Sensor) and the OQD (Oil Quality Display). The electrical control box is already prepared for these additions.

Applications
The GOLU can be used on hydraulic power units, testbenches, lube and oil tanks, large gearboxes, and storage tanks for biodegradable fluids.
Industries that are successfully applying the GOLU include: steel industry, marine industry, automotive industry, pulp & paper industry.

RMF offline filter GOLU1B92G01B0100000
Giant Off-Line Unit, single housing incl. 1 pc. RMF filter element 92G01B, pump/motor 50 cc. Standard configuration mounted on frame, 2,2 kW 230/400V 50/60Hz 3-phase, pressure difference switch, control box with motor protection, motor start/stop, dual moxa convertor RS485 to USB.
Article number : RMF009289713 (9289713).

Want to find out if the GOLU is suitable for your hydraulic system, testbench or turbine?
Contact us or call +31 180 62 13 13.

Downloads

Documentation (3.51 MB)
