RMF Maxi Water Vac
The RMF MaXi Water Vac (MXWV) is a vacuum dehydration unit that removes water, gas and solid contamination, which are corrosive and contribute to the reduction of machine life.
Water, gas and solid particle contamination greatly increase maintenance costs and contribute to unwanted break downs or total machine failures. The RMF MaXi Water Vac offers protection against malfunctions, break downs and total failures.
Operation
The RMF MXWV does not require continuous attention whilst operating, once connected properly and commissioned, oil purification is a semi-automatic, PLC controlled process.
Plug and play
The RMF vacuum dehydration units can easily be connected to your system, and can be used while the system is turned off or running. Just plug and play, get started and be amazed how fast water will be extracted.
Technical specification
- Total power output: 5,2 kW
- Flow: approx. 8 l/min
- Electric power supply: 230/400 VAC – 50/60 Hz 3Phase
- Inlet connection: G 3/4″ BSP Female
- Outlet connection: G 3/4″ BSP Female
- Heating power: 4 kW
- Max. suction pressure: 1 bar
- Max. return pressure: 1 bar
- Dimensions H x W x D (mm): 1600 x 750 x 650
More information? Email us or call +31 180 62 13 13
Download RMF case study vacuum dehydration unit – transformer.

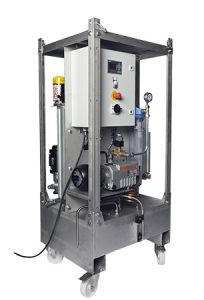

RMF vacuum dehydration unit MXWV1A30G1B070100
Vacuum dehydration unit, frame mounted, PLC controlled. Incl. 4 kW heater, vacuum pump and chamber, RMF offline filter unit (30G1B element) and RMF air conditioner ACL96R. Flow approx. 8 l/min.
Article number : DKL009293277 (9293277).
Maybe you need a more compact unit? Then have a look at the RMF Mini Water Vac.
